PFXST6500TADE Proface 10.4" touch panel display 24VDC, GP-ProEX model

Proface PFXST6500TADE 10.4" touch panel display 24VDC, GP-ProEX model:

The Proface PFXST6500TADE is a 10.4-inch Basic Human-Machine Interface (HMI) panel designed for industrial automation applications. It belongs to the ST6000 Series and offers a high-resolution display with advanced touch functionality. This HMI is widely used in factory automation, process control, and machine operation systems, providing intuitive visualization and control capabilities.

Technical Specifications:

Display Specifications

Display Type: TFT Color LCD

Display Size: 10.4 inches

Resolution: 800 x 600 pixels (SVGA)

Effective Display Area: 211.2 mm (W) x 158.4 mm (H)

Display Colors: 16 million colors

Backlight: White LED (non-replaceable by user; service required for replacement)

Backlight Lifetime: 50,000 hours minimum (at 25°C continuous operation, brightness reduced to 25% of original)

Brightness Adjustment: 16-level adjustment via touch panel or software

Touch Panel Specifications

Touch Panel Type: Resistive film (analog, single-touch)

Touch Panel Resolution: 1,024 x 1,024

Touch Panel Lifetime: 1,000,000 touches minimum

Electrical Specifications

Input Voltage: 24 VDC

Rated Voltage Range: 19.2 VDC to 28.8 VDC

Voltage Drop: ≤ 10 ms

Power Consumption:

Maximum: 10.56 W

Without external device power supply: ≤ 7.51 W

Standby mode (backlight off): ≤ 4.56 W

Inrush Current: ≤ 30 A

Insulation Strength: 1,000 VAC, 20 mA for 1 minute (between power terminals and FG terminal)

Insulation Resistance: ≥ 10 MΩ at 500 VDC

Environmental Specifications

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to +60°C

Operating Humidity: 10% RH to 90% RH (non-condensing, wet-bulb temperature ≤ 39°C)

Storage Humidity: ≤ 85% RH (non-condensing, wet-bulb temperature ≤ 39°C)

Dust Resistance: ≤ 0.1 mg/m³ (insulation class)

Pollution Degree: Pollution Degree 2

Air Quality: No corrosive gases

Atmospheric Pressure (Operating Altitude): 800 hPa to 1,114 hPa (altitude ≤ 2,000 meters)

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.

More Products In Stock:

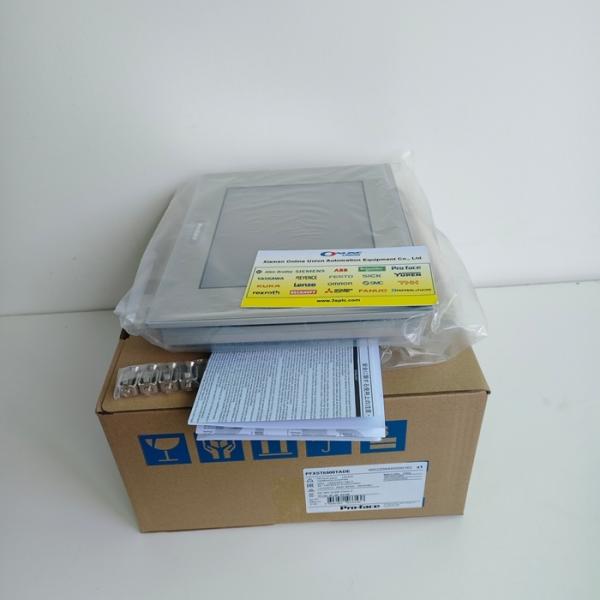

PFXST6500TADE Proface 10.4" touch panel display 24VDC, GP-ProEX model Images
